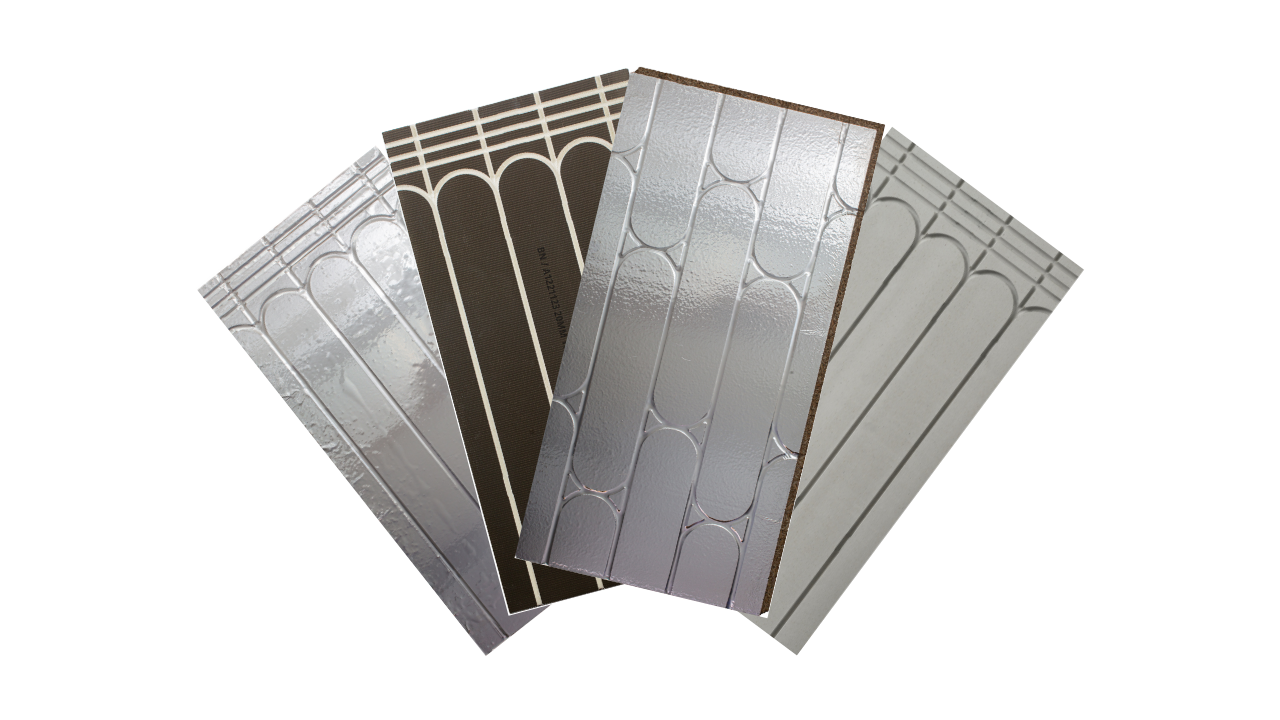

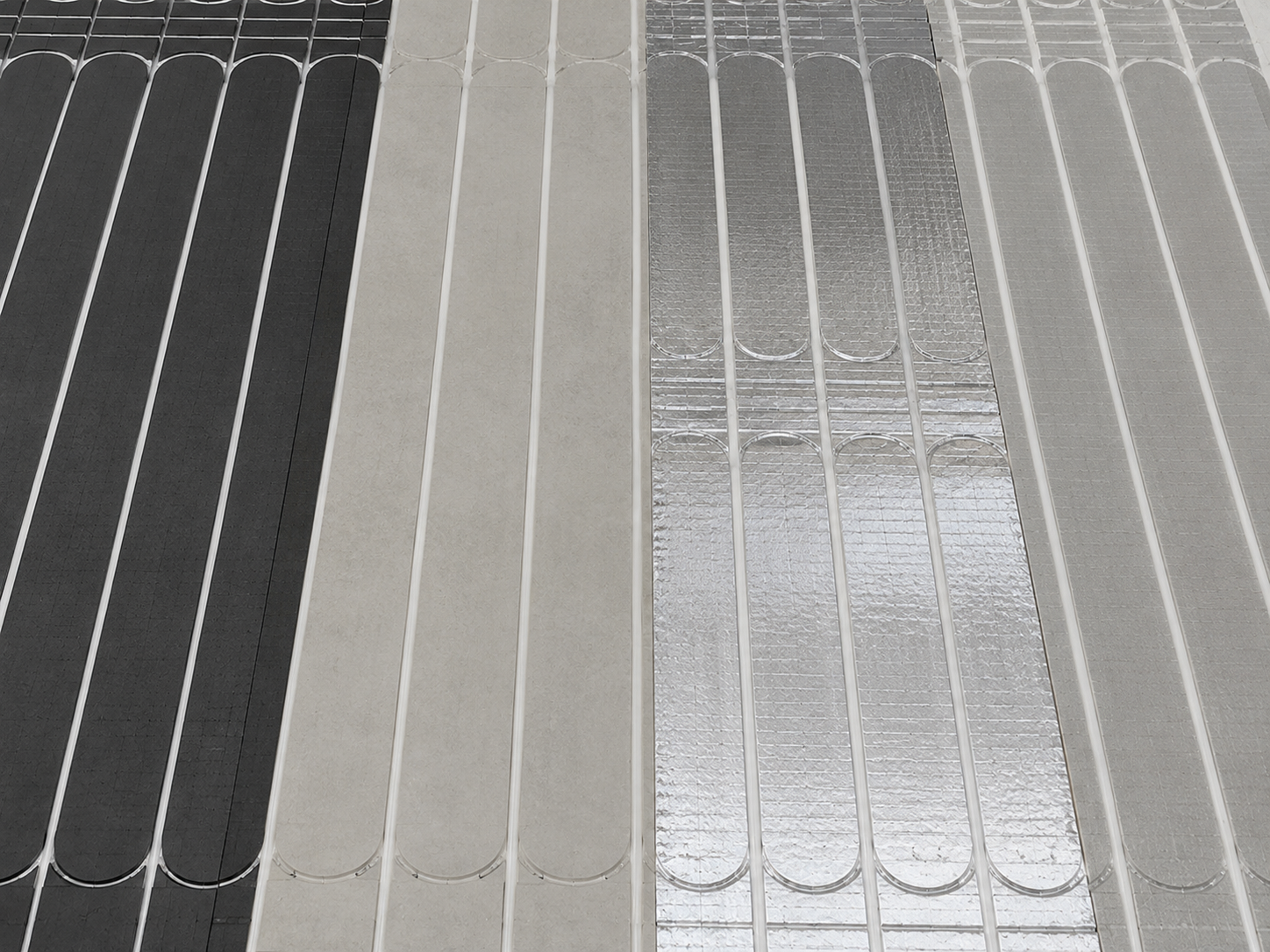

The Brenton® EPS Foil Overlay Board provides an efficient, lightweight and low-profile solution for installing wet underfloor heating over existing solid floor constructions. It is particularly suitable for renovation and refurbishment projects where minimising the overall increase in floor height is essential.

Manufactured from high-density expanded polystyrene, the board provides excellent insulation beneath the heating pipework, helping to reduce downward heat loss and direct more warmth toward the finished floor surface. The foil-facing layer supports improved lateral heat distribution, helping heat spread more evenly across the floor and reducing the risk of noticeable hot or cold areas.

Pre-routed channels securely accommodate the underfloor heating pipework and help installers maintain accurate, consistent pipe spacing throughout the system. This prepared layout simplifies installation, reduces on-site preparation and allows the pipework to be fitted neatly and efficiently.

By positioning the pipework close to the finished floor covering, the Brenton® EPS Foil Overlay Board helps create a responsive heating system that can warm the room quickly while operating at lower water temperatures. This can improve overall system efficiency and makes the board suitable for use with modern boilers and renewable heating technologies, including air source heat pumps.

The Brenton® EPS Foil Overlay Board can be used beneath a wide range of floor finishes, including engineered wood, laminate, vinyl, carpet and tiles, subject to the correct preparation, load-distribution layer and installation method being followed. Suitable for domestic and commercial applications, it provides installers with a dependable and practical solution for achieving comfortable, evenly distributed underfloor heating.

The Brenton® XPS Foil-Faced Overlay Board is a high-performance, low-profile solution designed for installing wet underfloor heating over existing solid or timber subfloors. Its lightweight yet durable construction makes it particularly suitable for renovation, refurbishment and new-build projects where floor height, installation speed and thermal performance are important considerations.

Each board measures 1,200mm × 600mm × 20mm, providing approximately 0.72m² of floor coverage. The accurately routed channels are designed to accommodate 16mm underfloor heating pipework at 150mm centres, helping installers maintain consistent pipe spacing and achieve balanced heat distribution throughout the heated area. Approximately 1.39 boards are required per square metre, excluding cutting waste.

Manufactured from high-density extruded polystyrene, the Brenton® board provides excellent resistance to compression and moisture while creating an insulating layer beneath the heating pipework. The aluminium foil facing helps transfer heat laterally across the board, reducing temperature variations and supporting more even warmth across the finished floor surface.

With the pipework fully recessed into the pre-routed channels, the underfloor heating layer maintains a board height of just 20mm before the final floor preparation and covering are installed. Positioning the pipe close to the finished floor also supports faster response times compared with traditional systems where the pipework is buried within a thick screed layer.

The Brenton® XPS Foil-Faced Overlay Board is suitable for use with modern boilers, heat pumps and other low-temperature heat sources. It can support tiles, engineered wood, laminate, vinyl and carpet when the appropriate load-distribution layer, preparation materials and installation method are used.

Combining a 20mm profile, 0.72m² coverage, 16mm pipe compatibility and 150mm pipe centres, the Brenton® XPS Foil-Faced Overlay Board provides installers with a fast, practical and efficient solution for low-profile underfloor heating projects.

The Brenton® Cement-Coated XPS Overlay Board is a strong, low-profile solution for installing wet underfloor heating over suitable solid or timber subfloors. Combining an insulating XPS core with a durable cement-coated surface, the board is designed for renovation, refurbishment and new-build projects where minimal floor build-up and efficient heat delivery are required.

Each board measures 1,200mm × 600mm × 20mm, covering approximately 0.72m² of floor area. This means approximately 1.39 boards are required per square metre, before allowing for cuts and installation waste. The pre-routed channels accommodate 16mm underfloor heating pipe at 150mm centres, supporting consistent pipe spacing and balanced heat distribution.

The high-density extruded polystyrene core provides a lightweight insulating layer beneath the pipework, helping to reduce downward heat loss and direct more heat toward the room above. XPS also offers good resistance to moisture and compression, making it suitable for use within correctly designed floor constructions.

The cement-coated surface increases the board’s strength and durability while providing a secure base for the appropriate adhesives, levelling compounds and load-distribution materials. Subject to the project specification and flooring manufacturer’s instructions, suitable tiles or engineered timber flooring may be installed over the prepared board without requiring a separate heavy screed layer.

With the 16mm pipework recessed inside the 20mm board, the system keeps the underfloor heating layer compact and positions the pipe close to the finished floor. This supports quicker heat transfer and faster system response than conventional installations where the pipe is buried within a thick screed.

The accurately routed straight channels and return bends simplify pipe installation and help create a neat, consistent layout. The boards can be cut on site to accommodate room shapes, obstacles and perimeter areas, helping reduce installation time and disruption.

Suitable for use with modern boilers, air source heat pumps and other low-temperature heat sources, the Brenton® Cement-Coated XPS Overlay Board provides a practical combination of insulation, strength and efficient heat distribution. Its 20mm profile, 0.72m² coverage, 16mm pipe compatibility and 150mm pipe centres make it an effective solution for professional low-profile underfloor heating installations.

Brenton® Gypsum Fibre Overlay Boards provide a strong, low-profile solution for installing wet underfloor heating over suitable existing solid or timber floors. Manufactured from high-density gypsum fibre, the boards combine excellent thermal conductivity with a durable surface, making them ideal for renovation, refurbishment and new-build projects.

The 18mm board profile helps keep the overall floor build-up to a minimum, making the system particularly useful where existing doors, thresholds, stairs and fitted units must be considered. Pre-routed channels are designed to securely accommodate 12mm underfloor heating pipework, allowing the pipe to sit close to the finished floor surface.

Positioning the heating pipework near the floor covering helps improve heat transfer and system responsiveness. The high-density gypsum fibre construction absorbs and distributes heat effectively across the floor, helping to create consistent temperatures and reduce noticeable hot or cold areas.

The accurately formed pipe channels simplify installation and help maintain a neat, organised pipe layout throughout the heated area. Return panels and routed bends allow the pipework to change direction smoothly while reducing the need for extensive cutting or preparation on site.

Brenton® Gypsum Fibre Overlay Boards also provide a firm and stable surface capable of supporting a wide range of floor finishes. Depending on the chosen flooring and installation specification, the system can be used beneath tiles, engineered wood, laminate, vinyl and carpet with the appropriate primers, adhesives, levelling products or load-distribution layers.

Suitable for use with modern boilers, air source heat pumps and other low-temperature heating sources, Brenton® Gypsum Fibre Overlay Boards offer a practical combination of strength, efficient heat transfer and minimal floor height. Their 18mm profile, compatibility with 12mm pipework and high-density construction make them an effective solution for responsive, professionally installed underfloor heating systems.

Brenton® 22mm Structural Chipboard Overlay Panels provide a strong, load-bearing solution for incorporating wet underfloor heating into suspended timber floors and other suitable floor constructions. Combining structural floor support with accurately routed pipe channels, the panels allow the underfloor heating system and the floor deck to be installed as one integrated solution.

The 22mm structural panel profile is designed to provide a stable walking surface while accommodating 16mm underfloor heating pipework within the pre-routed channels. This reduces the need for a separate overlay system and helps minimise additional floor build-up compared with installing heating boards above a conventional chipboard deck.

The accurately formed channels securely hold the pipework in position and help installers create a neat, consistent pipe layout across the heated area. Routed return sections allow the pipe to change direction smoothly, supporting efficient installation and helping maintain the correct bending radius.

Brenton® Structural Chipboard Overlay Panels are particularly suitable for installation directly over timber joists, battens or appropriately prepared suspended floor structures. Once correctly fixed, the panels form a durable structural deck capable of supporting normal domestic and commercial floor loads, subject to the joist spacing, fixing pattern and overall floor design.

Positioning the 16mm heating pipe close to the finished floor surface supports efficient heat transfer and faster system response than traditional installations where pipework is buried within a thick screed. Aluminium heat-diffusion plates or foil components may also be used where specified to help spread heat more evenly across the panel surface and reduce temperature variations.

The system can be used beneath a wide range of floor finishes, including engineered wood, laminate, carpet, vinyl and tiles, provided the appropriate preparation, decoupling membrane or load-distribution layer is installed in accordance with the flooring manufacturer’s instructions.

Suitable for use with modern boilers, air source heat pumps and other low-temperature heating sources, Brenton® 22mm Structural Chipboard Overlay Panels provide a practical combination of structural strength, low floor build-up and effective heat distribution. Their 22mm profile, 16mm pipe compatibility and integrated load-bearing design make them an ideal solution for professional underfloor heating installations on suspended timber floors.

The Brenton® 6mm Cement Fibre Board is a high-performance tile backer board designed to provide a strong, stable and moisture-resistant surface for floor finishes installed over underfloor heating systems. Suitable for both residential and commercial applications, it enhances the durability of the floor while helping to create the ideal base for ceramic and porcelain tiles.

The board is installed directly over compatible Brenton® overlay underfloor heating systems, such as EPS, XPS foil-faced and structural chipboard systems, using the appropriate adhesive and mechanical fixings where required. Its rigid cement fibre construction helps distribute loads evenly across the floor while reducing movement in the subfloor, creating a secure and reliable surface for the final floor covering.

Designed with excellent dimensional stability and moisture resistance, the Brenton® 6mm Cement Fibre Board performs exceptionally well in kitchens, bathrooms and other areas exposed to humidity. Its high thermal conductivity also allows heat from the underfloor heating system to transfer efficiently through to the finished floor without compromising performance.

Compatible with ceramic and porcelain tiles, natural stone and other suitable floor finishes, the Brenton® 6mm Cement Fibre Board is the ideal finishing layer for low-profile underfloor heating installations. Combining strength, durability and ease of installation, it helps ensure a long-lasting, professional-quality floor while supporting the efficient operation of the complete Brenton® underfloor heating system.
