Brenton's System Types

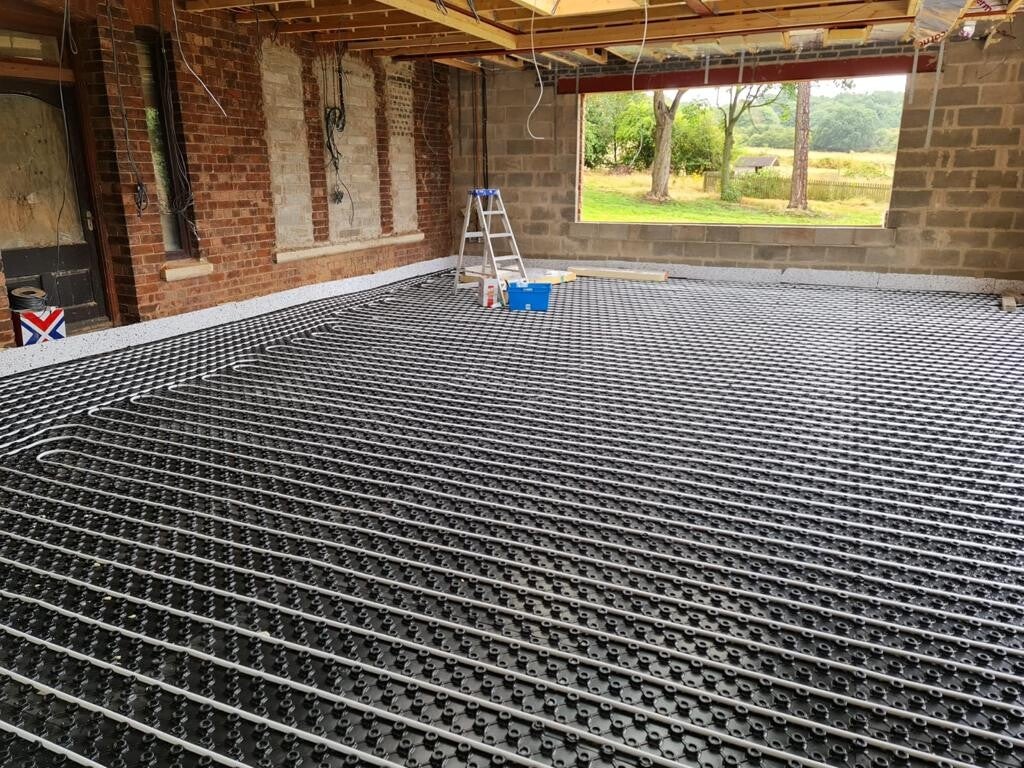

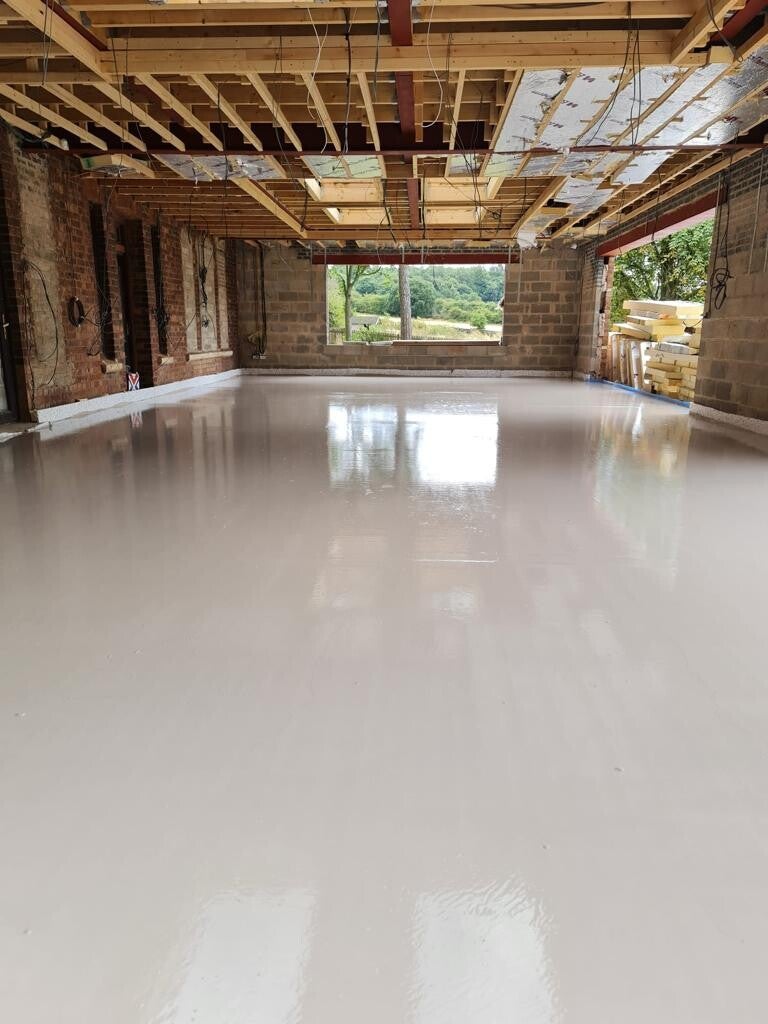

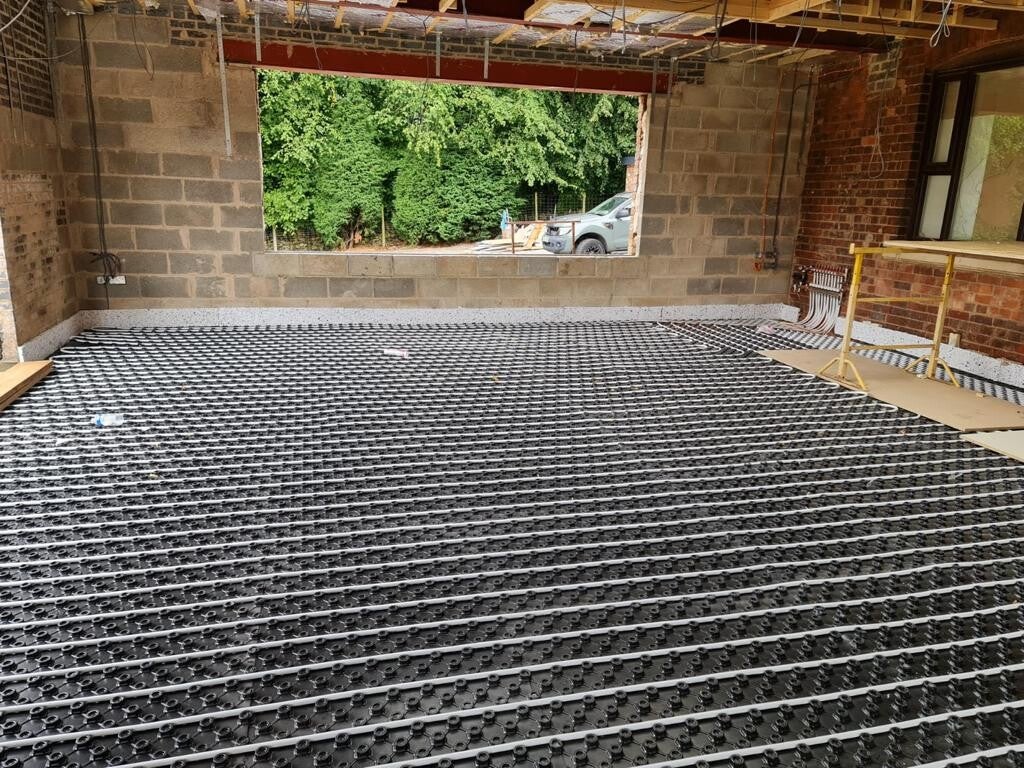

The system is installed over a solid subfloor with high-performance insulation to minimise downward heat loss and maximise efficiency. Edge insulation is fitted around the perimeter before Brenton® 16mm WRAS-approved MLC pipe is secured using castellated panels, clip rails or staple fixing systems. Once pressure tested, the pipework is encapsulated within either sand and cement screed or flowing screed, creating a durable thermal mass for optimum heat distribution.

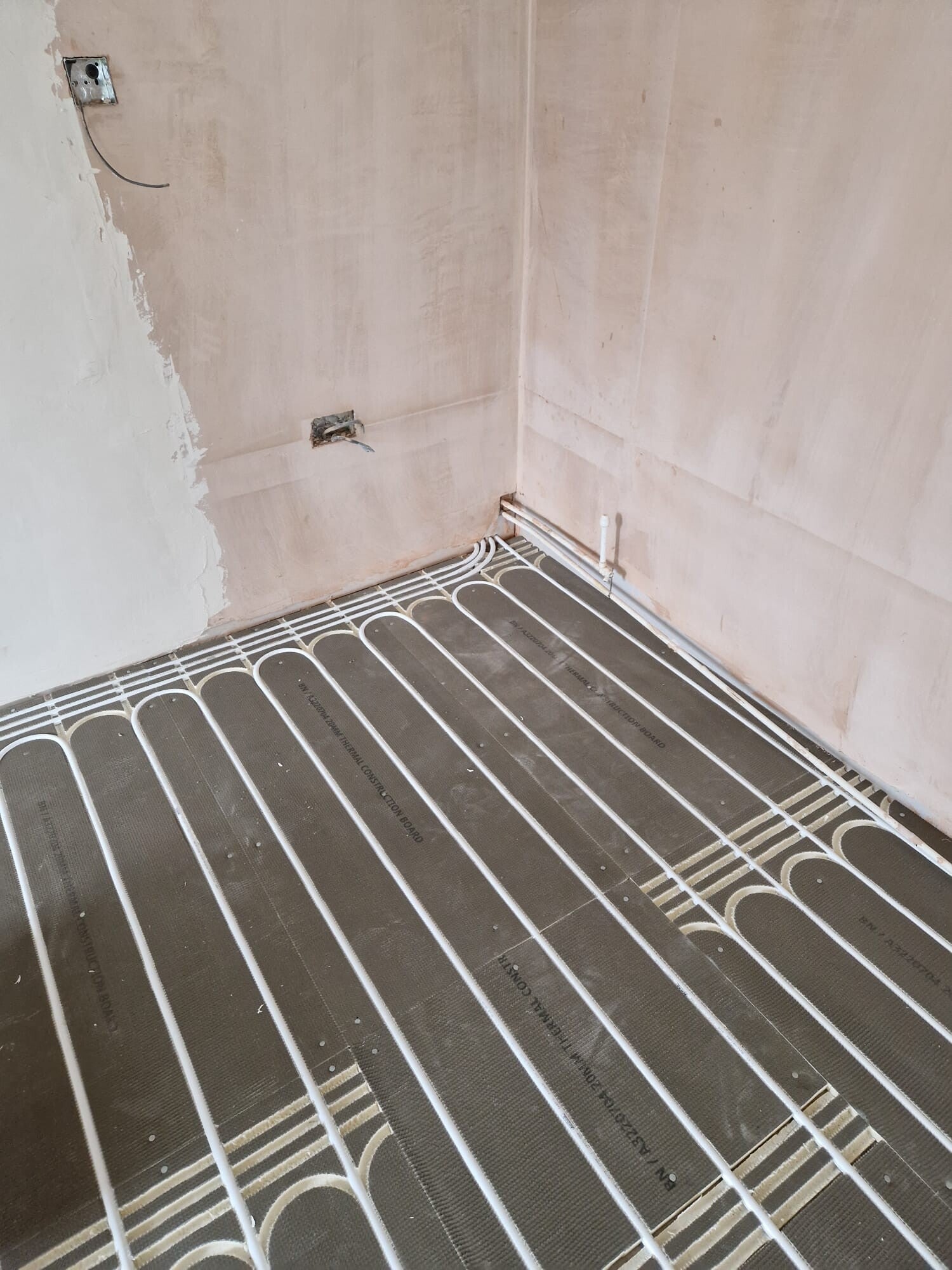

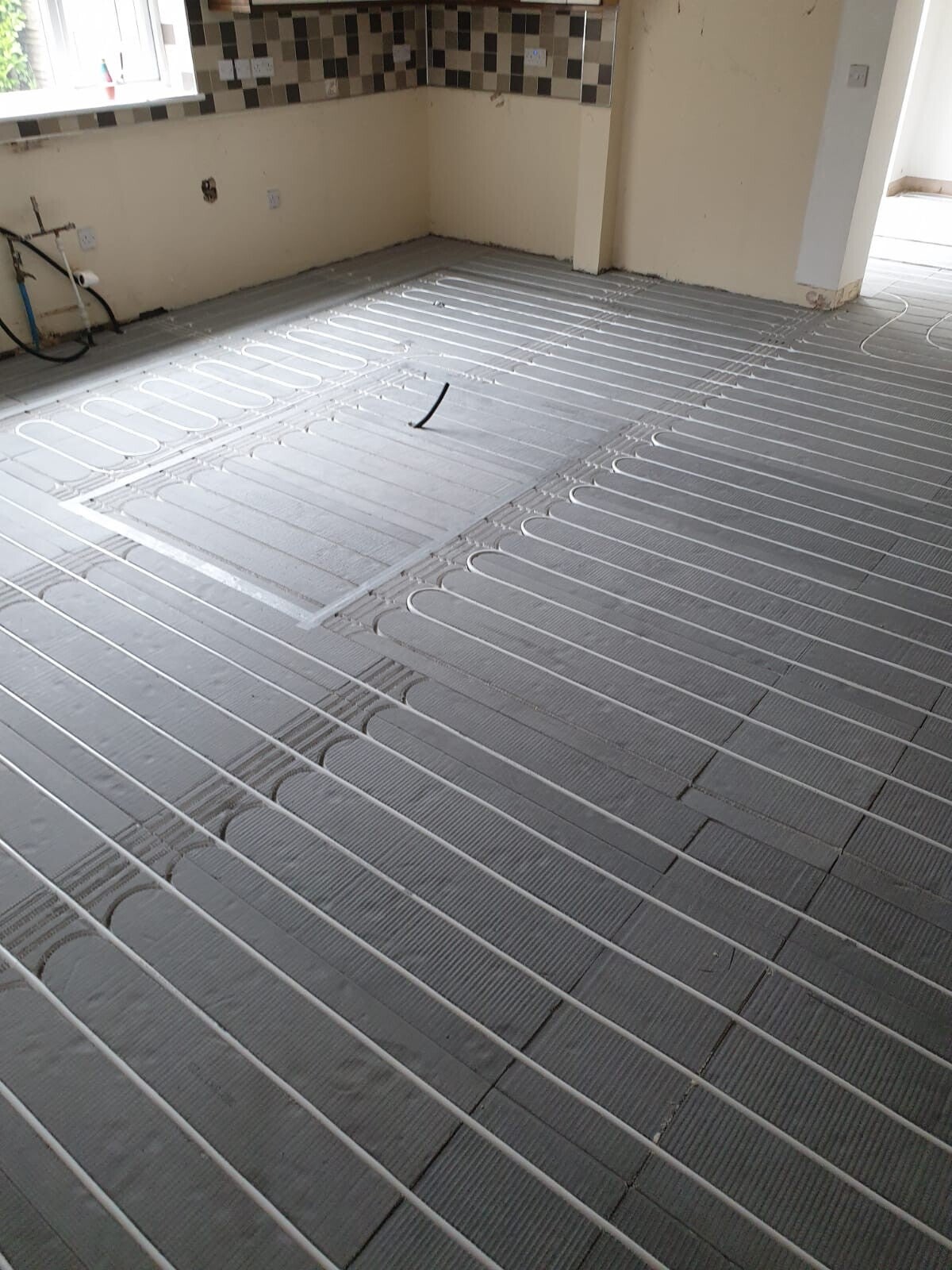

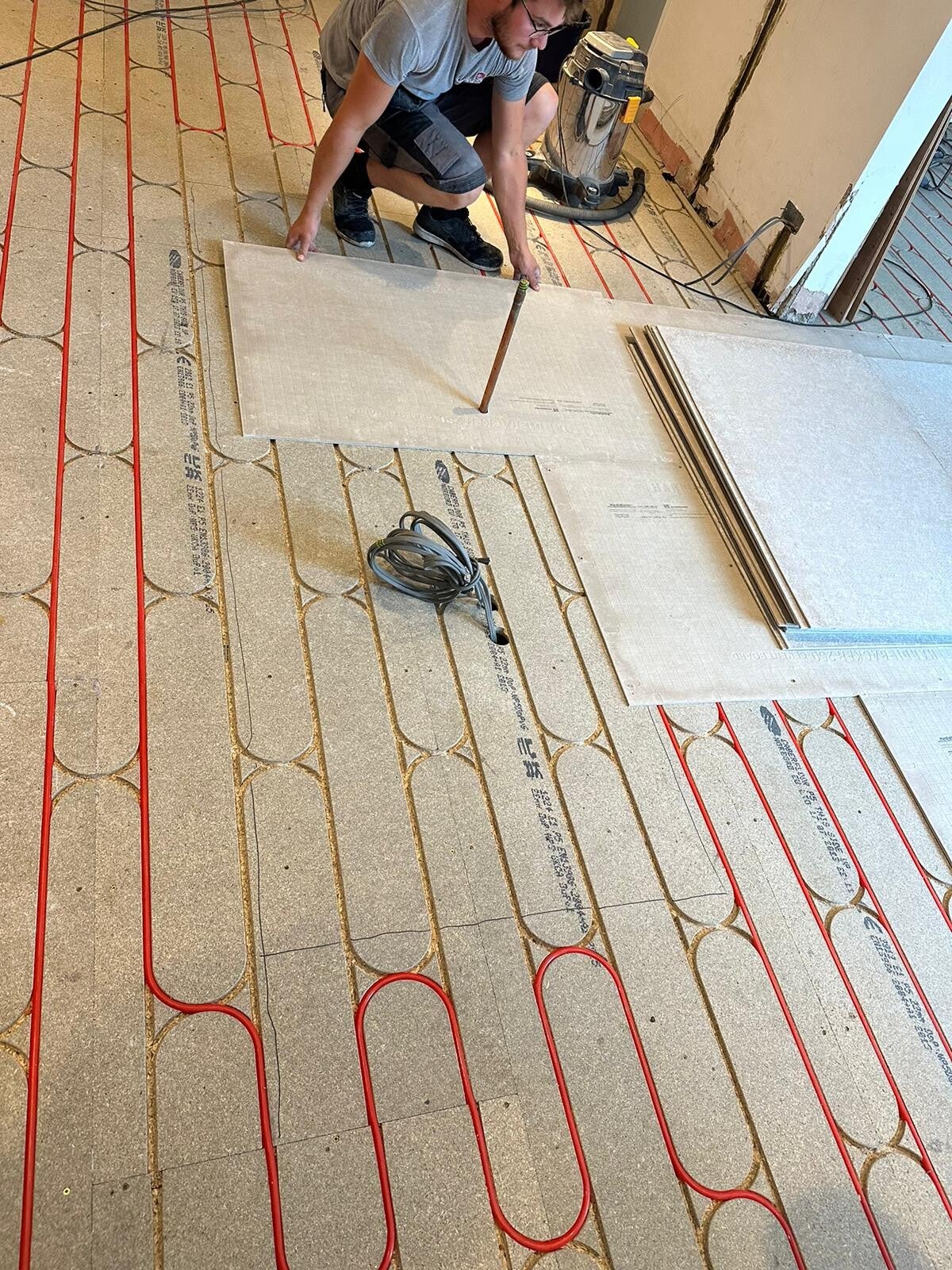

The Brenton® EPS Overlay Underfloor Heating System is a low-profile solution designed for retrofit projects, renovations and properties where increasing floor height must be kept to a minimum. It allows underfloor heating to be installed directly over an existing solid floor, eliminating the need for a full screed while providing fast installation and excellent heat distribution.

The system is installed over a sound, level existing subfloor, followed by Brenton® high-density grooved EPS overlay panels, which provide both insulation and support for the heating system. Brenton® 16mm WRAS-approved MLC pipe is then pressed into the pre-routed grooves, ensuring the correct pipe spacing and consistent heat output across the floor. Depending on the system specification, a heat diffusion layer or aluminium foil surface helps spread heat evenly before the final floor finish is installed.

Once the pipework has been pressure tested, the chosen floor finish can be laid in accordance with the flooring manufacturer's recommendations. The Brenton® EPS Overlay System is compatible with engineered wood, laminate, luxury vinyl tile (LVT), vinyl and, with suitable preparation, ceramic and porcelain tiles. Designed to work efficiently with both boilers and heat pumps, the system delivers rapid heat response, improved energy efficiency and comfortable, even warmth, making it an ideal choice for modern renovation and refurbishment projects.

Benefits of The Brenton EPS Underfloor Heating System

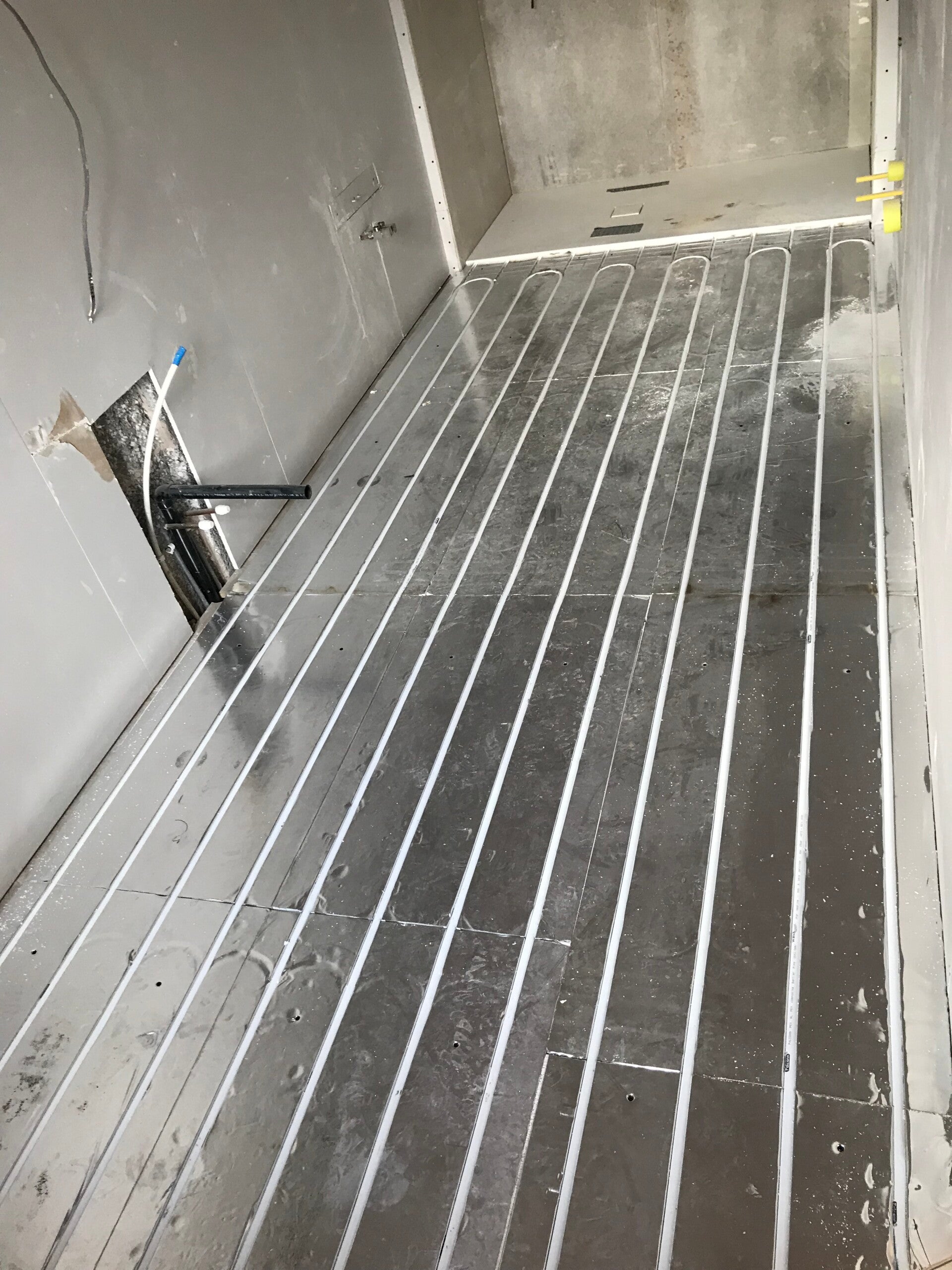

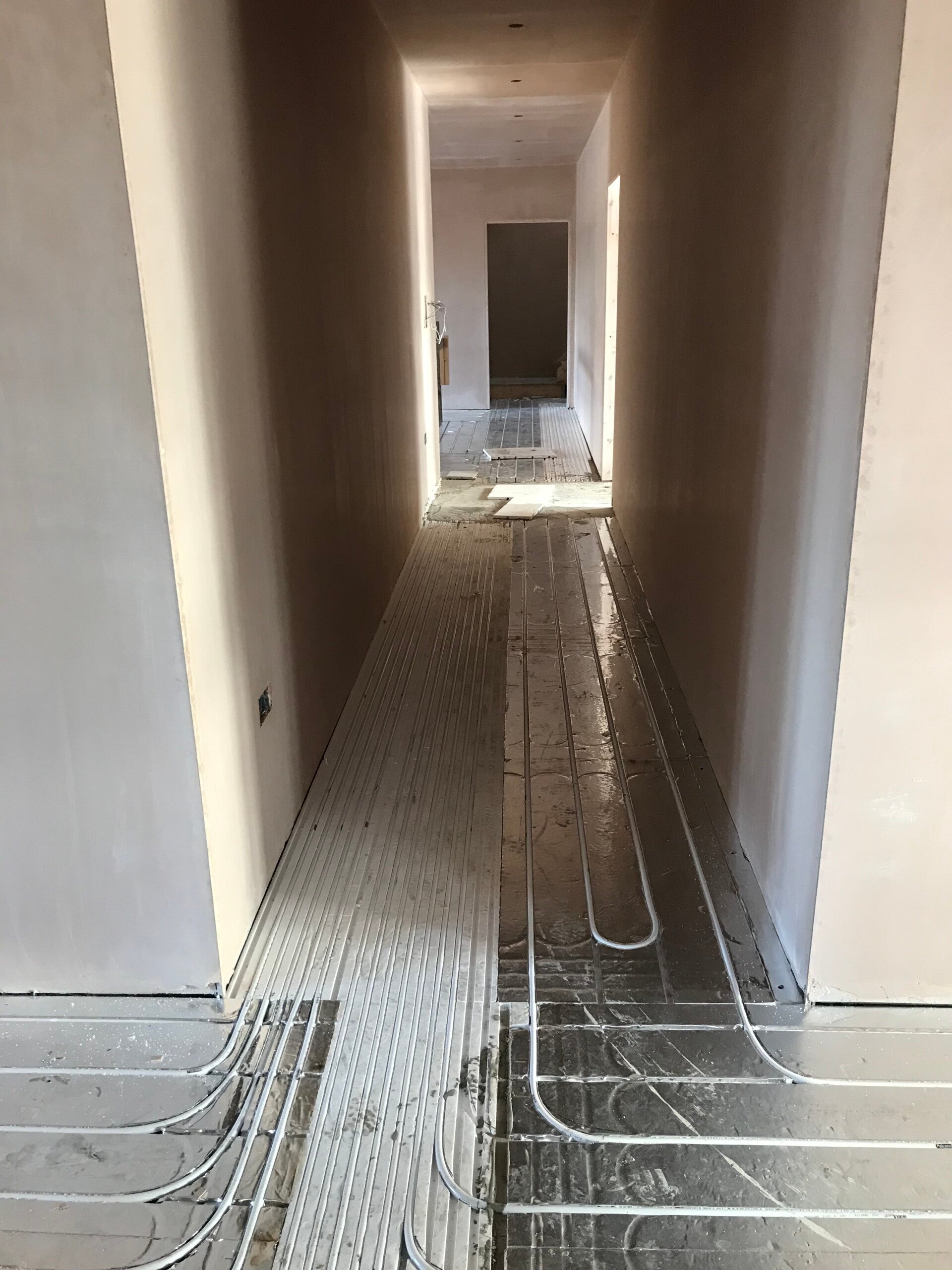

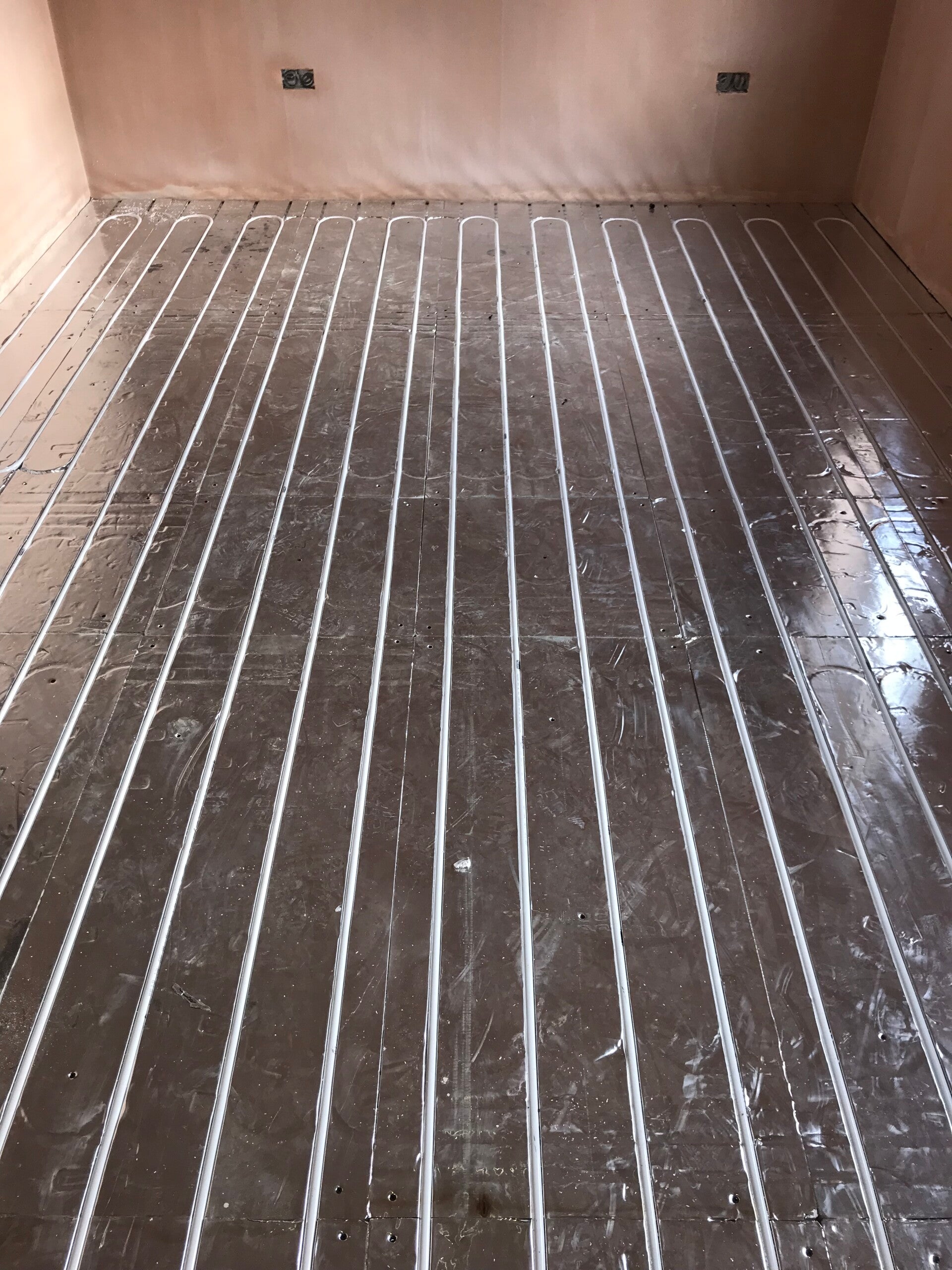

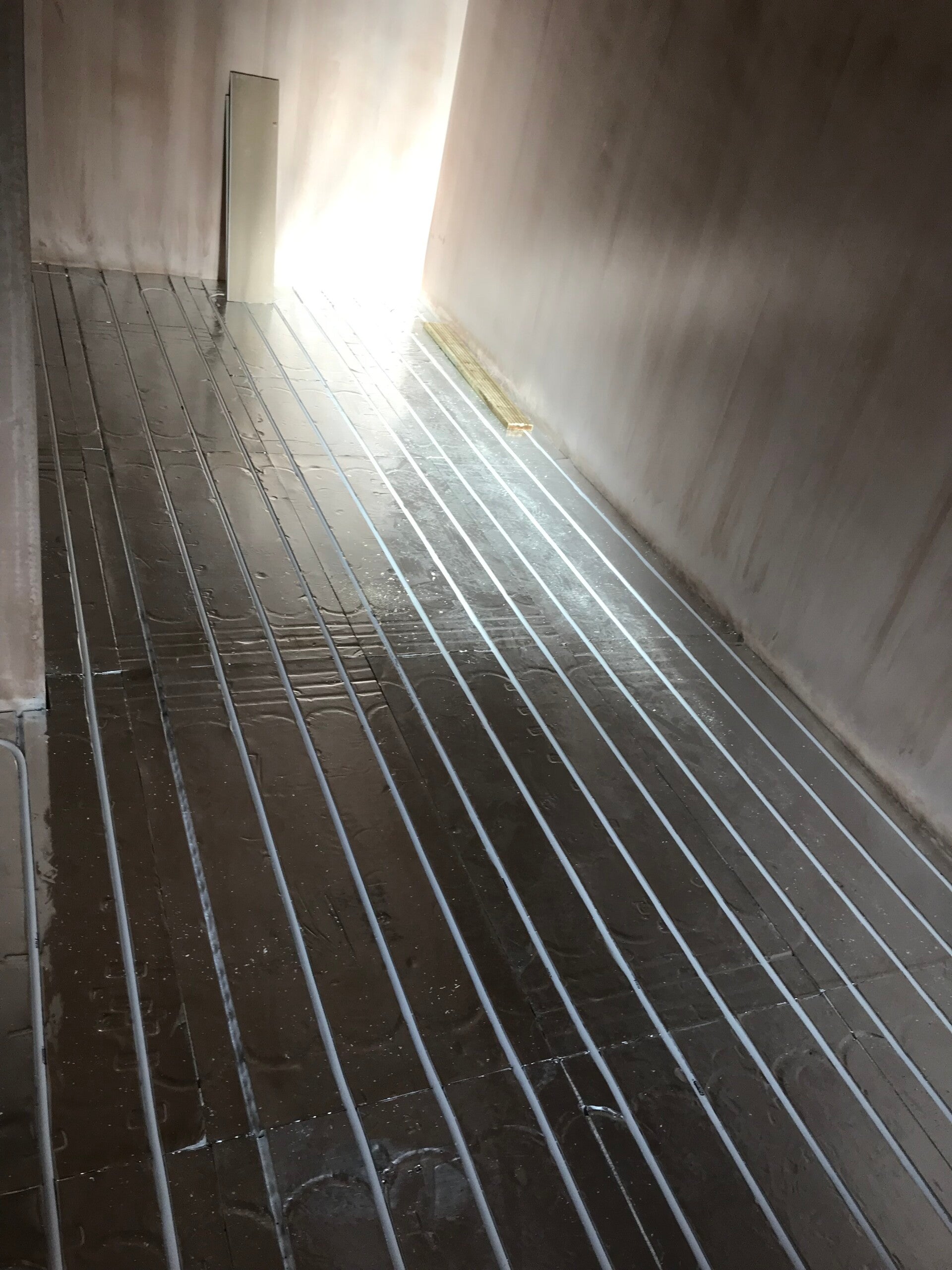

The Brenton® XPS Foil-Faced Overlay Underfloor Heating System is a premium low-profile solution designed for renovation, retrofit and refurbishment projects where floor height must be kept to a minimum. Manufactured from high-density extruded polystyrene (XPS) with a thermally conductive aluminium foil surface, the system combines excellent insulation with rapid and even heat distribution, making it ideal for both residential and commercial applications.

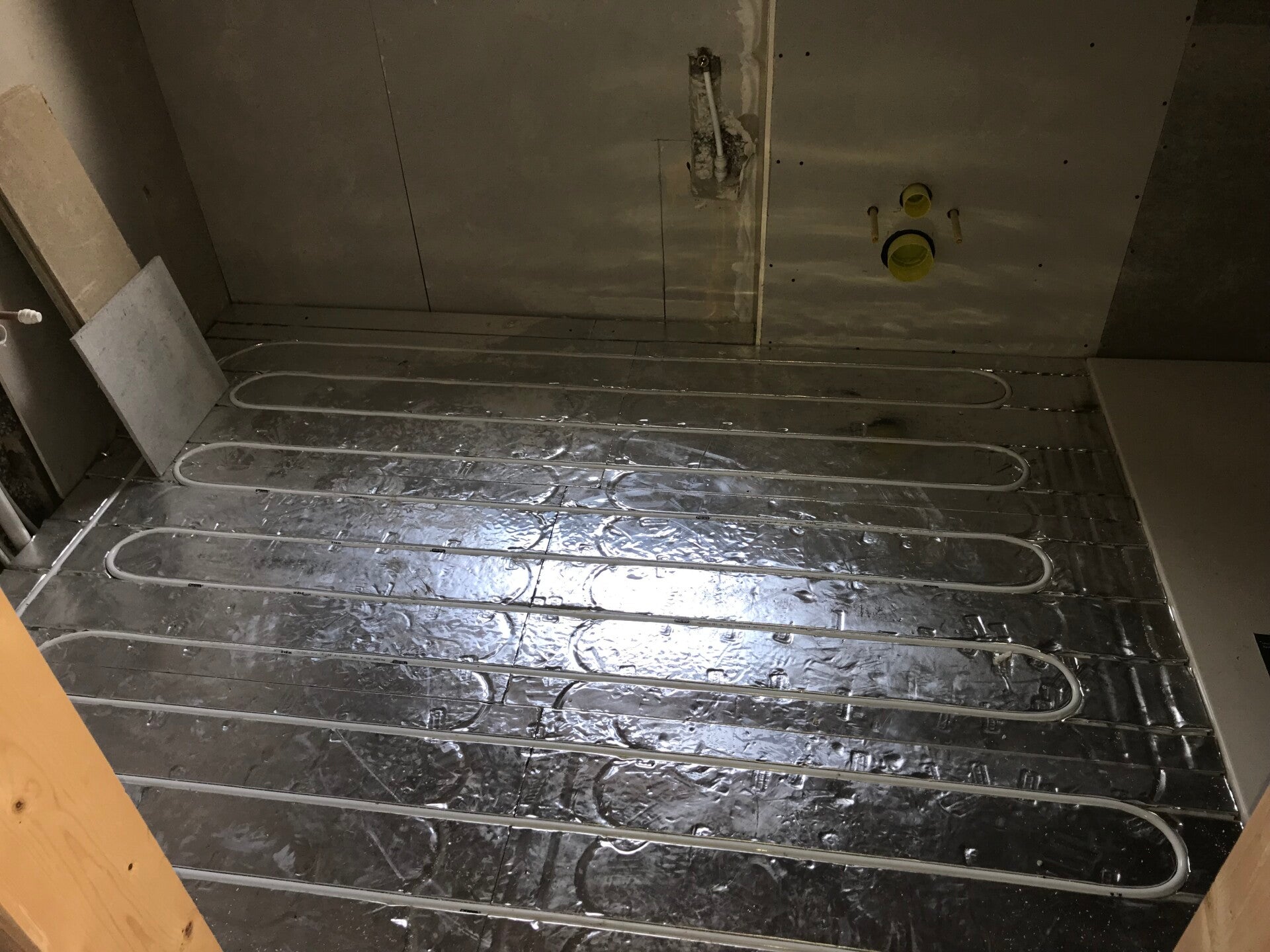

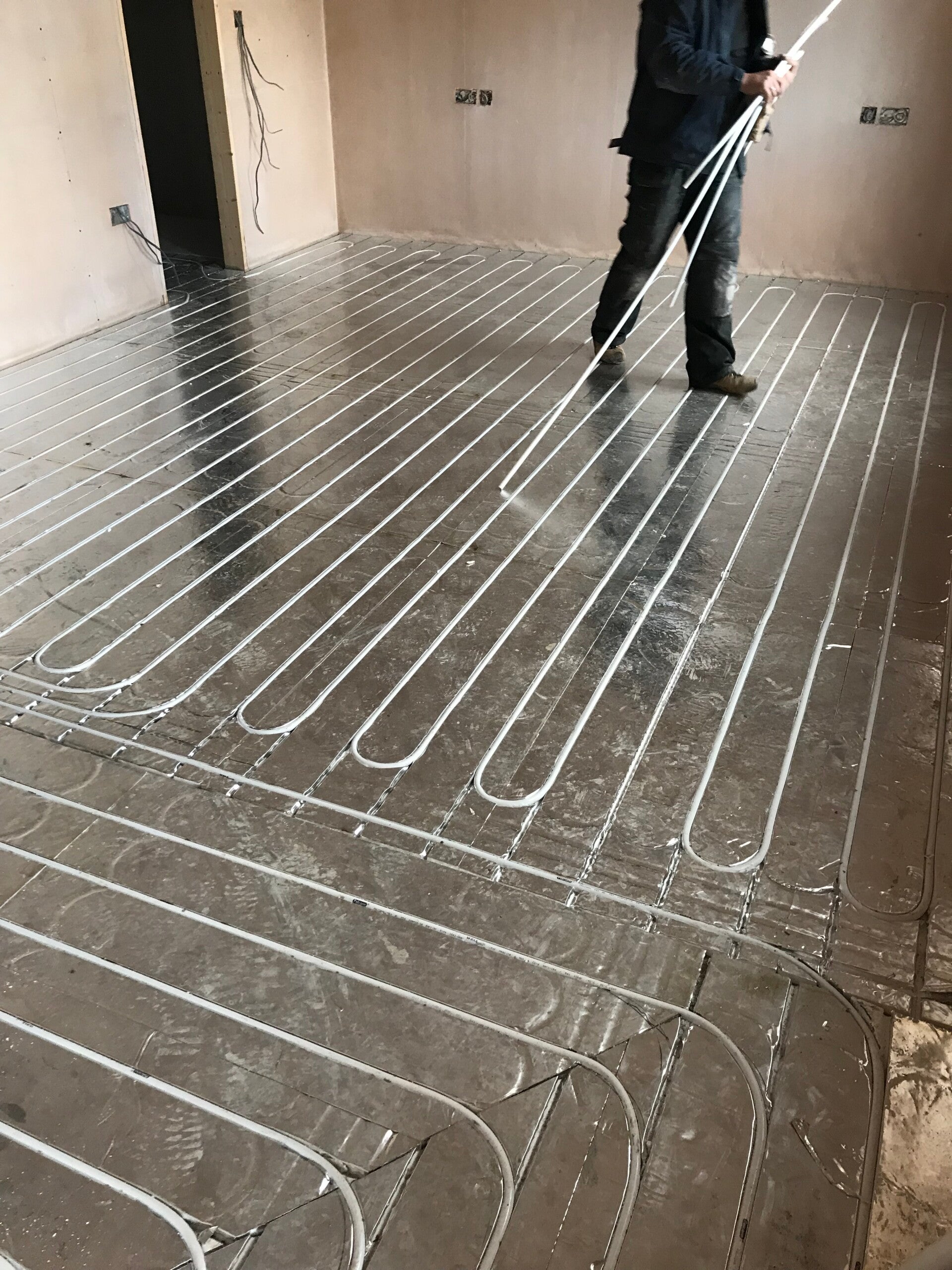

The system is installed over a sound, level existing subfloor, followed by Brenton® XPS foil-faced grooved overlay panels. These lightweight yet durable panels provide high compressive strength while reducing downward heat loss. Brenton® 16mm WRAS-approved MLC pipe is then pressed securely into the pre-routed grooves, with the aluminium foil layer spreading heat evenly across the floor surface. This ensures a fast heat response and consistent temperatures throughout the room.

Why Choose the Brenton® XPS Foil-Faced Overlay System?

The Brenton® XPS Foil-Faced Overlay System combines high-performance insulation, strength and efficient heat distribution within one low-profile panel. Its high-density XPS core helps reduce downward heat loss and directs more warmth into the room, while the aluminium foil surface spreads heat evenly across the floor to improve comfort, reduce cold spots and support faster heat-up times.

Lightweight, durable and easy to handle, the system is designed to simplify installation and reduce labour time. Its low floor build-up makes it especially suitable for renovations, extensions and retrofit projects where available floor height is limited. Pre-routed pipe channels also help maintain accurate pipe spacing and create a neat, consistent installation.

The system is compatible with a wide range of floor finishes and can operate efficiently with traditional boilers and low-temperature heat sources such as air source heat pumps. With premium Brenton® components, dependable thermal performance and expert technical support, it provides a reliable, energy-efficient and long-lasting underfloor heating solution for both residential and commercial projects.

Once the pipework has been pressure tested, the final floor finish can be installed in accordance with the flooring manufacturer's recommendations. The Brenton® 22mm Structural Chipboard Overlay System is compatible with engineered wood, laminate, LVT, vinyl and suitable carpets. Designed to work efficiently with both traditional boilers and renewable heat sources such as air source heat pumps, the system offers rapid installation, excellent structural strength, reliable performance and an energy-efficient heating solution for both residential and commercial applications.

Why Choose the Brenton® 22mm Structural Chipboard Overlay System?

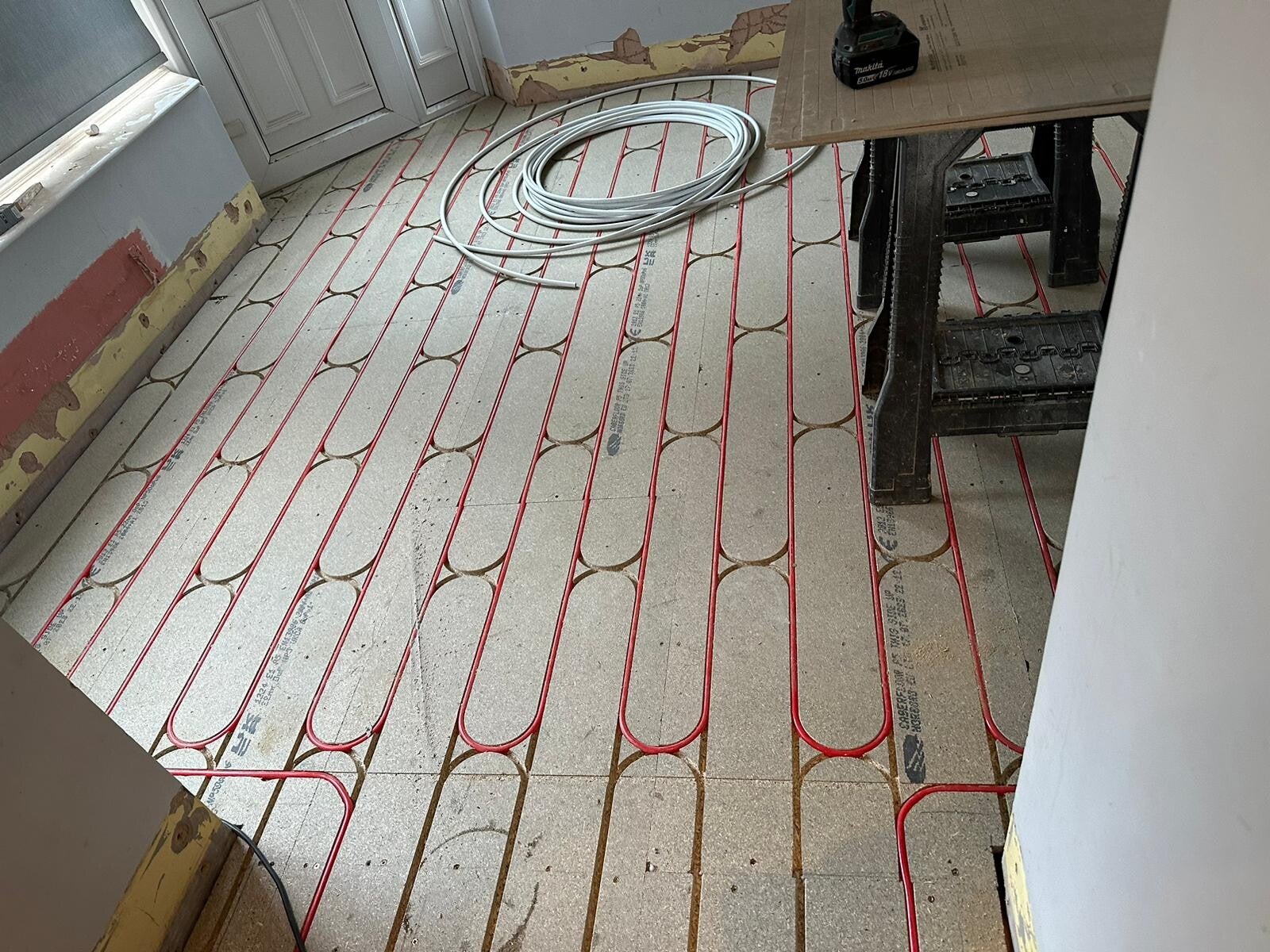

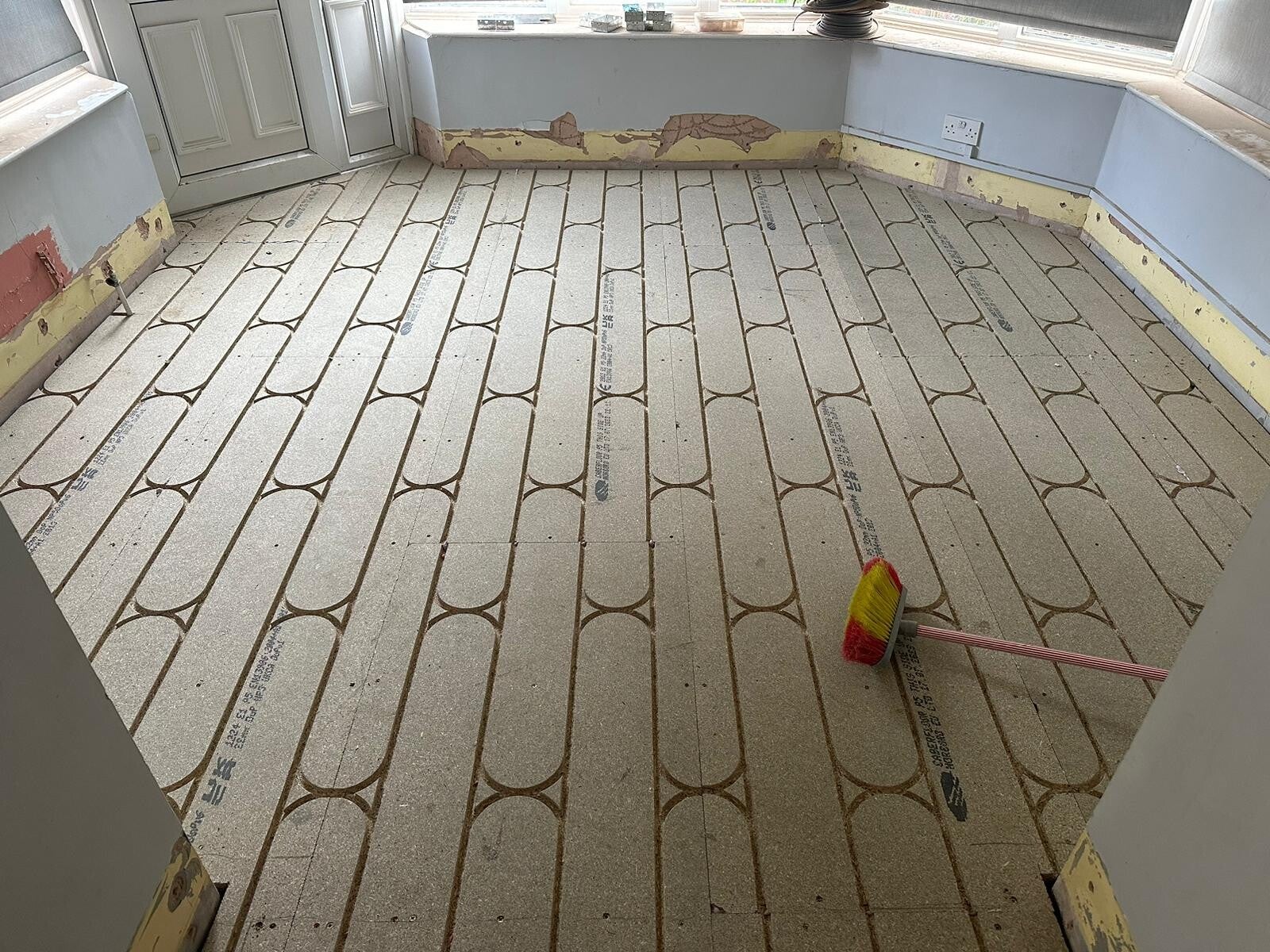

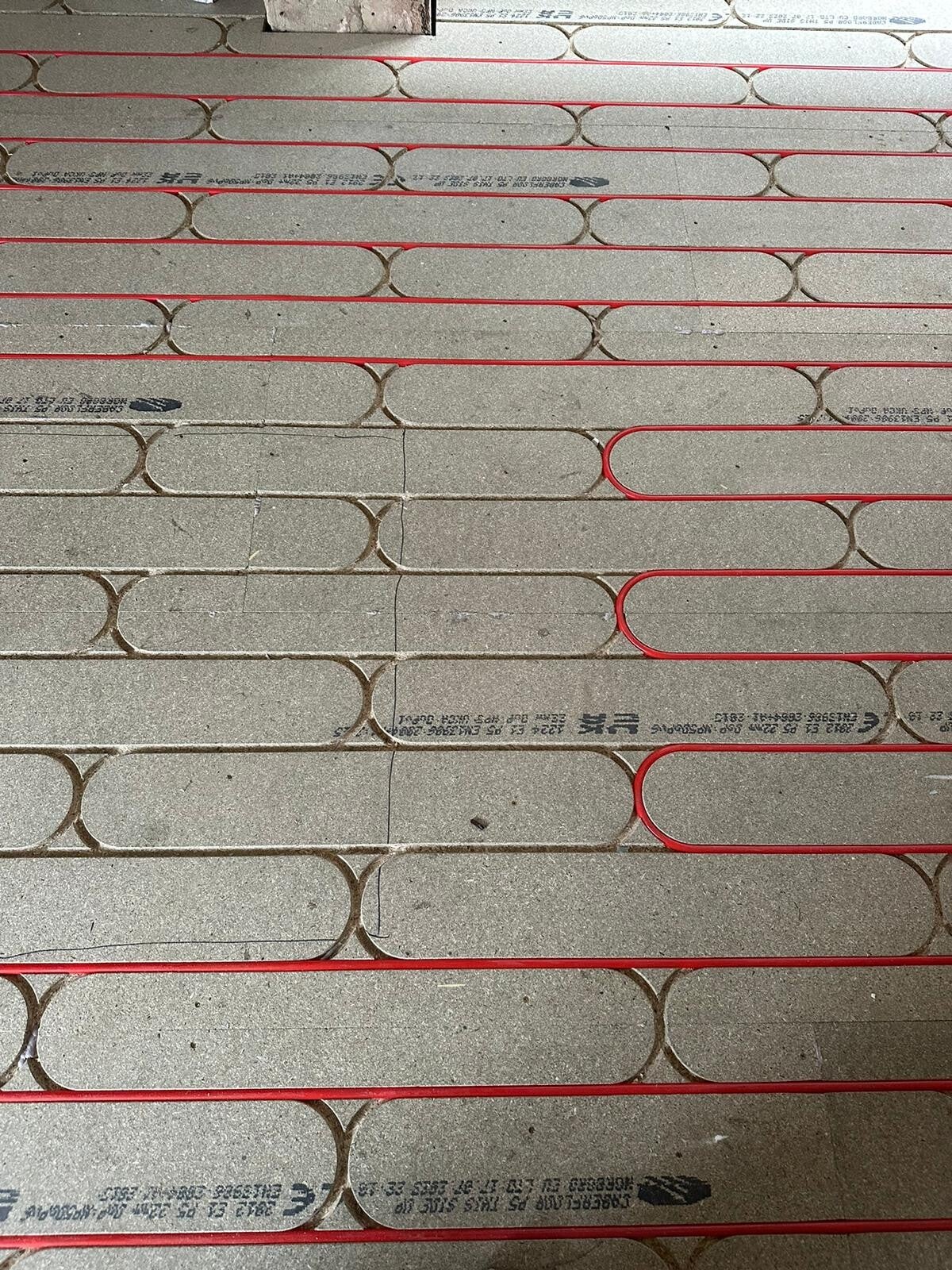

The Brenton® 22mm Structural Chipboard Overlay System is the ideal choice for suspended timber floors, upper storeys and refurbishment projects, combining structural strength with efficient underfloor heating in a single solution. Its durable 22mm chipboard construction creates a stable, load-bearing floor while eliminating the need for additional structural flooring.

With integrated aluminium heat diffusion plates, warmth is distributed evenly across the floor for improved comfort and consistent room temperatures. The low-profile design allows for a faster, cleaner installation than traditional screed systems, helping to reduce labour time and minimise disruption.

Compatible with a wide range of floor finishes and designed to work efficiently with both traditional boilers and air source heat pumps, the Brenton® 22mm Structural Chipboard Overlay System delivers reliable performance, improved energy efficiency and long-lasting durability, making it an excellent choice for modern timber floor constructions.
